Flyash Embankment Construction: Step-by-Step Guide

This comprehensive guide explains flyash embankment construction in accordance with IRC: SP: 58-2001 and MoRT&H specifications. Learn materials selection, core design, earth cover, compaction methods, quality control, safety measures, and frequently asked questions about flyash embankment construction.

1. Materials Selection for Flyash Embankment Construction 2. Flyash Core Design Requirements 3. Geotechnical Properties of Flyash 4. Geotechnical Strength Parameters 5. Earth Cover Requirements 6. Step-by-Step Flyash Embankment Construction Process 6a. Site Preparation and Foundation 6b. Spreading, Moisture Control, and Compaction 6c. Intermediate Layers and Drainage 7. Quality Control and Safety 8. Frequently Asked Questions (FAQ)

Materials Selection for Flyash Embankment Construction

All materials must be approved by the Engineer. The core material is flyash, encapsulated by earth cover to ensure stable flyash embankment construction and durability for highway projects.

Flyash Core Design Requirements

Minimum Density: Flyash density must be ≥ 0.9 g/cc to achieve proper compaction for flyash embankments.
Handling: Flyash must be transported in covered dump trucks to prevent dust and moisture loss, which is critical in flyash embankment construction.

Geotechnical Properties of Flyash

Understanding these properties is essential for flyash embankment design and stability analysis.

Property	Typical Range	Notes
Appearance	Fine powder, grey to tan	N/A
Fineness	Mostly < 0.075 mm	Fine-grained material suitable for embankment cores
Specific Gravity	1.90–2.55	Lower than most soils
Dry Density (Loose)	0.9–1.2 g/cc	Minimum required for proper flyash compaction
Compacted Dry Density	1.0–1.4 g/cc	Varies with compaction method
Permeability	10⁻⁴–10⁻⁷ cm/sec	Low but higher than cohesive soils
Plasticity	Non-plastic	Ideal for embankment cores
pH	8–10 (Alkaline)	Influences leachate characteristics

Geotechnical Strength Parameters for Flyash Embankments

Parameter	Typical Range	Notes
Angle of Internal Friction (φ)	25°–35°	Good frictional strength for flyash embankments
Cohesion (c)	Low–Moderate	Often assumed zero for conservative design
Maximum Dry Density (MDD)	0.9–1.6 g/cc	Measured via Modified Proctor Test (IS: 2720 Part 8)
Optimum Moisture Content (OMC)	18%–38%	Used to achieve target compaction for flyash embankments

Earth Cover Requirements for Flyash Embankments

The embankment must be fully covered with good earth to prevent erosion. Maximum clod size: 50 mm. Proper earth cover ensures long-term stability in flyash embankment construction.

Location / Condition	Minimum MDD	Plasticity Index (PI)	Notes
Embankment H ≤ 3 m	≥ 1.52 g/cc	5–9%	No expansive soils unless stabilized
Embankment H > 3 m / Flooding	≥ 1.60 g/cc	5–9%	Chemical analysis required in saline areas
Subgrade / Shoulder	≥ 1.75 g/cc	N/A	Forms top 0.5 m of embankment

Step-by-Step Flyash Embankment Construction Process

1. Site Preparation and Foundation

Clearing & Grubbing: Remove vegetation, cut trees/stumps 500 mm below ground.
Topsoil Stripping: Max 150 mm; stockpile max 2 m for re-vegetation.
Setting Out: Mark embankment limits with batter pegs; construct wider than design.
Dewatering: Pump stagnant water to keep foundation dry.
Foundation Compaction: Scarify and compact ground to ≥ 97% MDD.
Capillary Cut-off: Install granular sand layer where water table is high.

2. Spreading, Moisture Control, and Compaction

Spreading: Spread fill mechanically, finish with motor grader.
Simultaneous Layering: Lay flyash core and cover soil together before compaction.
Moisture Control: Flyash OMC ± 2%, cover soil OMC; sprinkle water evenly.
Compaction: Use vibratory roller 8–10 tons; overlap passes by one-third width.

Roller Type (Dead Weight)	Max. Loose Layer Thickness
Vibratory Roller (80–100 kN)	Up to 400 mm
Static Roller (80–100 kN)	Not exceeding 200 mm

3. Intermediate Layers and Drainage

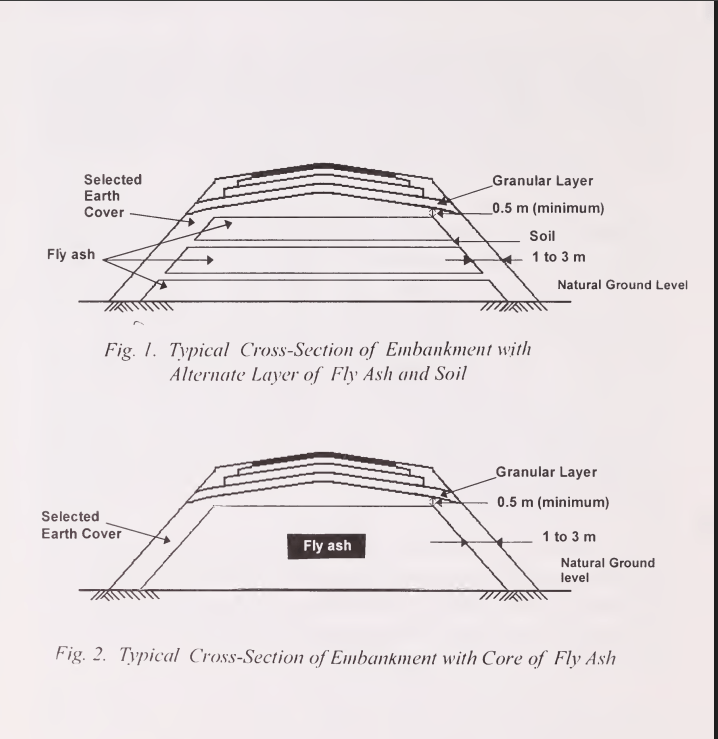

For embankments >3 m: Intermediate layers ≥200 mm; vertical spacing 1.5–3 m.
Benching at 4–6 m vertical intervals to drain surface water.

Quality Control and Safety in Flyash Embankments

Compaction Standards

Field densities tested via sand replacement method or nuclear density gauge.

Location / Purpose	Required Density (% of MDD)
General Embankment Layers	≥ 95% of Modified Proctor
Embankment at Bridge Abutments	≥ 100% of MDD

QC Test Items

QC Test Item	Reference Code	Minimum Frequency
Atterberg’s Limits	IS: 2720 Pt 5	2 Tests / 3000 m³
Modified Proctor Test (MDD)	IS: 2720 Pt 8	2 Tests / 3000 m³
Moisture Content	IS: 2720 Pt 2	1 Test / 250 m³
Density of Compacted Layer	IS: 2720 Pt 28	1 Test / 1000 m²

Safety and Environmental Measures

Traffic Safety: Install signs; deploy 2 flagmen; secure equipment.
Water Protection: Protect nearby water bodies with berms, dykes, sediment basins.
Dust Control: Keep vehicle tracks moist to prevent dust dispersion.

Frequently Asked Questions (FAQ) about Flyash Embankment Construction

What is a flyash embankment?

A flyash embankment is an earthen embankment where flyash is used as the core material, covered by suitable earth, for roads, highways, or railways.

What are the benefits of using flyash in embankments?

Flyash reduces construction costs, improves soil stability, and is an environmentally sustainable material for embankment construction.

How is a flyash embankment compacted?

The flyash core and cover soil are compacted together using vibratory or static rollers to meet IS and IRC density requirements.

What safety measures are needed during flyash embankment construction?

Traffic management, flagmen, dust control, and water protection measures are essential for safety and environmental compliance.

Which standards govern flyash embankment construction?

IRC: SP: 58-2001, MoRT&H specifications, and IS: 2720 series for compaction and soil testing.
