Initial Setting Time of Cement

    vicat-apparatus-cement-test

    Learn the complete step-by-step procedure to determine the initial setting time of cement as per IS 4031 (Part 5). Includes Vicat apparatus method, NHAI quality audit practices, and corrective measures for failed results in highway and bridge construction projects.

    1. Objective

    The Initial Setting Time Test measures the time when a cement paste starts losing its plasticity and begins to harden. This test ensures that cement provides adequate workable time for mixing, transporting, and placing in concrete or mortar, especially for NHAI and highway bridge works.
    It helps to:

    • Avoid cold joints during placement.
    • Maintain uniform hydration and strength.
    • Prevent premature stiffening during batching and transit.

    2. Reference Standards

    • IS 4031 (Part 5):1988 / 2014 – Methods of physical tests for hydraulic cement: Determination of setting times.
    • IRC & MoRT&H (5th Revision) – Guidelines for quality control in concrete and bridge works.

    3. Apparatus Required

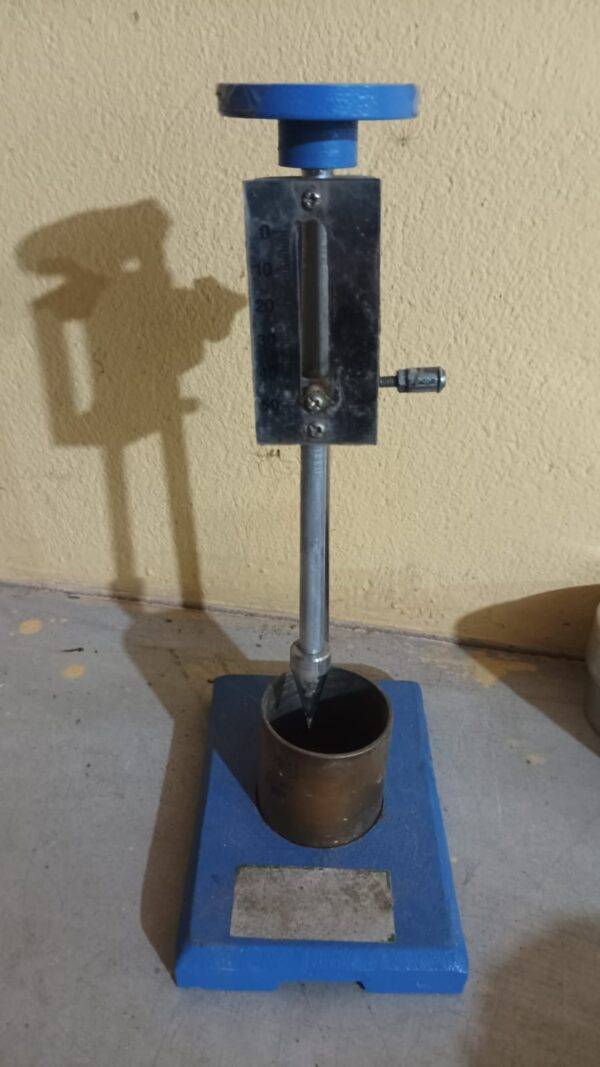

    1. Vicat Apparatus with 10 mm diameter needle (for initial setting).
    2. Balance (accuracy ±0.01 g).
    3. Mixing bowl / glass container.
    4. Trowel or spatula.
    5. Measuring cylinder (accuracy ±1 ml).
    6. Glass or non-absorbent base plate.
    7. Stopwatch.

    Audit Tip: Always verify Vicat apparatus calibration before testing. Uncalibrated needles can cause significant deviations in setting time—especially important for NHAI quality audits.

    4. Sample Preparation

    1. Cement Sample: 300 g passing through a 90 µm IS sieve.
    2. Water Content: Use water corresponding to standard consistency (determined by IS 4031 Part 4).
    3. Mixing:
      1. Add water gradually to cement.
      1. Mix for 2–3 minutes to achieve a uniform, lump-free paste.

    Audit Note: Incomplete mixing or incorrect water can alter the observed setting time.

    5. Test Procedure (IS 4031 Method)

    1. Filling Vicat Mold:
      1. Fill the mold placed on a non-absorbent base plate with cement paste.
      1. Level the surface smoothly.
    2. Initial Setting Determination:
      1. Fit 10 mm diameter standard needle.
      1. Lower the needle gently into the paste every 5 minutes.
      1. Record the time when the needle penetrates only up to 5 mm from the base.
    3. Repeatability:
      1. Conduct at least three trials for accuracy.
      1. Take the average value as the final initial setting time.

    NHAI Specification:
    For Ordinary Portland Cement (OPC), Initial Setting Time ≥ 30 minutes is mandatory. Rapid setting indicates quality or fineness issues.

    6. Interpretation of Results

    ObservationInterpretation
    < 30 minutesSetting too fast – risk of cold joints and reduced workability
    30–600 minutesAcceptable range (for OPC under NHAI specs)
    > 600 minutesToo slow – may delay setting and affect strength gain

    7. Troubleshooting – Why & What if Test Fails

    Common Causes:

    • Abnormal cement fineness or gypsum content.
    • Incorrect water measurement.
    • Faulty or uncalibrated Vicat apparatus.

    Preventive Measures:

    • Use freshly sieved cement.
    • Maintain testing room at 25 ± 2°C and RH < 65%. (RH = Relative Humidity)
    • Verify water content using the consistency test.
    • Cross-verify with another operator for audit accuracy.

    If Initial Setting Time < 30 minutes:

    • Check for high fineness or gypsum shortage.
    • Blend with slower-setting cement or adjust batching sequence.

    If Initial Setting Time > 600 minutes:

    • Verify moisture contamination or aged cement.
    • Use standard-setting OPC batch.

    Documentation:
    Always record batch number, operator name, date, temperature, humidity, and testing time.

    8. Case Studies from Indian NHAI Projects

    • Delhi–Meerut Expressway: Low gypsum OPC → setting <30 min.
      ✅ Action: Re-blending with standard gypsum batch.
    • Mumbai–Pune Expressway: Monsoon humidity → >600 min setting.
      ✅ Action: Controlled storage and water adjustment.
    • Bengaluru Elevated Corridor: Operator inconsistency → ±10 min deviation.
      ✅ Action: Dual-operator verification system.

    9. NHAI Recommended QC Practices

    • Store cement in dry, ventilated sheds.
    • Calibrate Vicat apparatus quarterly.
    • Repeat the test thrice for accuracy.
    • Maintain test traceability with delivery batch.
    • Adjust concrete work schedule based on setting time results.

    10. Key Takeaways

    • The Initial Setting Time test (IS 4031 Part 5) ensures cement maintains proper workability and strength in highway and bridge construction.
    • Always determine standard consistency before performing the test.
    • Non-compliance often indicates poor cement quality, humidity exposure, or testing error.
    • Consistent testing and traceable documentation are vital for NHAI audit approval and durable pavement quality.
