Kerb Casting Methodology – MoRTH Compliant

Applicable Specifications: MoRTH Clause 409 & Section 1700 · IS 456:2000 · IS 10262:2019 · IS 9103

1. Scope

This methodology provides a detailed, step-by-step guide for the construction of cement concrete kerbs along road edges, medians, traffic separators, and footpaths. It includes mechanized casting, manual casting, and precast kerb installation. The guide ensures compliance with MoRTH specifications, approved drawings, and site-specific requirements while emphasizing QA/QC and safety standards.

2. Reference Standards

3. Materials & Mix Design

High-quality materials are critical for durable kerbs. Selection criteria include:

• Cement: OPC or PPC from approved source, with proper storage to avoid moisture contamination.
• Aggregates: Clean, hard, durable, well-graded, and free from silt, clay, or organic material.
• Water: Potable and free from harmful salts, oils, or acids.
• Admixtures: Plasticizers or superplasticizers (IS 9103 compliant) for workability improvement without affecting strength.
• Concrete Grade: Typically M20; M25 may be used for high-load zones.
• Slump: Low-slump 10–25 mm to avoid segregation during mechanized casting.
• Curing: Minimum 7 days, water curing or approved curing compound. Extend curing in hot or windy conditions.
• Sealant & Baker Rod: For expansion joint filling and to control joint depth.

4. Type of Construction & Equipment

4.1 Construction Types

• Mechanized continuous kerb casting for long stretches – ensures uniformity and speed.
• Manual casting using fixed formwork – suitable for small stretches, curves, or restricted sites.
• Precast kerb installation – used for tight radii, junctions, or congested areas where casting in place is difficult.

4.2 Equipment Required

• Kerb casting machine with sensors or string-line guidance for continuous operation.
• Batching plant and transit mixers for consistent concrete supply.
• Auto levels, total station, and other survey instruments for accurate alignment.
• Hand tools for finishing and edge detailing.
• Saws for precise cutting of expansion joints.
• Vibratory compactors for bedding concrete compaction where required.

5. Concrete Production, Transportation & Handling

Concrete quality is crucial for kerb durability. Best practices include:

• Produce concrete at an approved batching plant to maintain mix uniformity.
• Use transit mixers for transportation, covering concrete to prevent segregation.
• Check slump on-site; reject any batch not conforming to specified range.
• Maintain homogeneity by mixing thoroughly; avoid delayed placement.
• Temperature management: Avoid casting in extreme heat; adjust water content for workability and hydration.

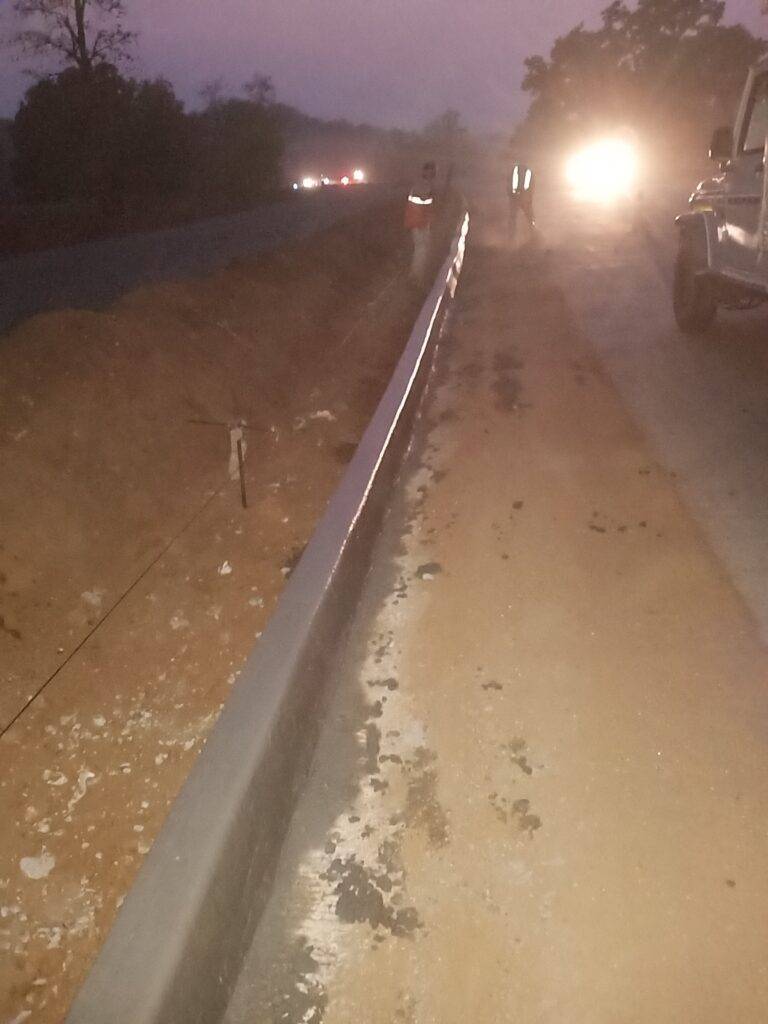

6. Kerb Casting Procedure

1. Set Out: Mark kerb alignment using pegs, string line, and levels. Ensure slope and camber are consistent.
2. Prepare Base: WMM/PCC layer checked for compaction, level, and moisture content.
3. Position Formwork / Machine: Fixed formwork for manual casting; sensor-guided kerb machine for mechanized casting.
4. Concrete Placement: Feed approved concrete; for mechanized casting, ensure continuous supply; for manual casting, place in layers and compact using vibrators.
5. Bedding Concrete: Provide 40–70 mm bedding layer where specified to ensure uniform load transfer.
6. Dowel & Tie Bars: Place accurately as per design; ensure cover and alignment for expansion/contraction control.
7. Joint Control: Insert Baker rod and sealant for expansion joints; cut saw joints at 5 m spacing once concrete attains adequate strength.
8. Finishing: Smooth exposed surfaces using hand tools; ensure no honeycombing or voids.
9. Curing: Water curing or approved compound for minimum 7 days. Extend curing in hot/windy climates.
10. Quality Checks: Verify levels, dimensions, surface evenness, and texture using straight edge, measuring tape, and sand patch test.
11. Precast Installation: Lift, align, and fix precast kerbs with bedding mortar; seal joints properly.

7. Quality Control & Inspection

8. Tolerances

Permissible deviations in kerb line, level, and elevation:

• Line & Level: ±5 to ±6 mm
• Kerb height: ±5 mm
• Joint spacing: ±50 mm
• Surface smoothness: maximum 2 mm variation over 1 m straight edge

9. Safety Measures

• Mandatory PPE for all workers – helmets, gloves, boots, hi-vis vests
• Barricading and signage to protect traffic and pedestrians
• Safe operation of kerb machines and cutting tools
• Restricted access to casting zone for unauthorized personnel
• Emergency protocol in case of concrete spill or machinery malfunction

10. Maintenance & Rehabilitation

Even with high-quality casting, kerbs are subject to wear and tear from traffic, weather, and maintenance activities. Recommended practices include:

• Regular visual inspection for cracks, spalling, or displacement.
• Replacement of damaged precast kerbs with proper bedding and alignment.
• Re-sealing of expansion joints every 2–3 years.
• Surface cleaning to prevent accumulation of debris and water ponding.
• Use of epoxy injection for minor cracks to prevent propagation.
• Re-leveling or bedding adjustment for kerbs that have settled unevenly.
