Learn the complete Bitumen Penetration Test procedure as per IS 1203 and ASTM D5. Understand grades, heating precautions, and how penetration value affects pavement performance.
Description: Learn the complete procedure of the Bitumen Penetration Test as per IS 1203 and ASTM D5. Includes apparatus, sample preparation, heating process, and its significance in highway construction quality control.
The Bitumen Penetration Test is one of the most common tests performed in highway quality laboratories to determine the consistency or hardness of bitumen. It helps assess the ability of bitumen to resist deformation under load. The test result directly influences pavement flexibility, durability, and service life.
As per IS:1203 (1978) and ASTM D5, the Penetration Test determines the depth (in tenths of a millimetre) that a standard needle penetrates vertically into a bitumen sample under specific conditions of load, time, and temperature. The value obtained is known as the penetration value of the bitumen.
The penetration grade indicates the hardness or softness of bitumen. A higher penetration value means softer bitumen suitable for cold climates, while lower values indicate harder bitumen ideal for hot regions. Common penetration grades used in India are 30/40, 60/70, and 80/100.
Selection of bitumen grade should match the climatic conditions and traffic load. Hard grades such as VG-40 are recommended for high-temperature zones and heavy traffic, while softer grades like VG-10 are preferred in colder regions.
Heat the bitumen sample to a pouring consistency (not exceeding 90°C). Pour the sample into a metal cup to a depth of about 35 mm and allow it to cool for 1 to 1.5 hours at room temperature. Place the sample in a water bath maintained at 25°C for at least 1 hour before testing.
Penetration Value (dmm) = Average of three readings
Example: (67 + 68 + 69) / 3 = 68 dmm
Heating bitumen must be carefully controlled to prevent oxidation and hardening. Excessive heating alters bitumen’s chemical properties, reducing penetration value and flexibility.
To bring the bitumen to a fluid state for easy pouring and uniform temperature distribution without causing aging or volatility loss.
Bitumen should never be heated beyond 90°C during sample preparation. Higher temperatures accelerate oxidation and make the bitumen brittle, leading to premature pavement cracking.
This test ensures that the bitumen used in road construction meets design requirements for flexibility, binding strength, and temperature susceptibility.
Helps verify that the bitumen supplied on site matches the approved specification before mixing.
Indicates how bitumen will behave under traffic and climatic stress conditions.
Shows the relative hardness or softness of bitumen, which influences pavement flexibility.
Using bitumen of correct penetration value minimizes cracking, rutting, and bleeding in pavements.
The Bitumen Penetration Test is an essential quality control measure that defines the usability and performance of paving bitumen. By maintaining the correct penetration value, highway engineers can ensure durable and flexible pavements suited to Indian climatic conditions.

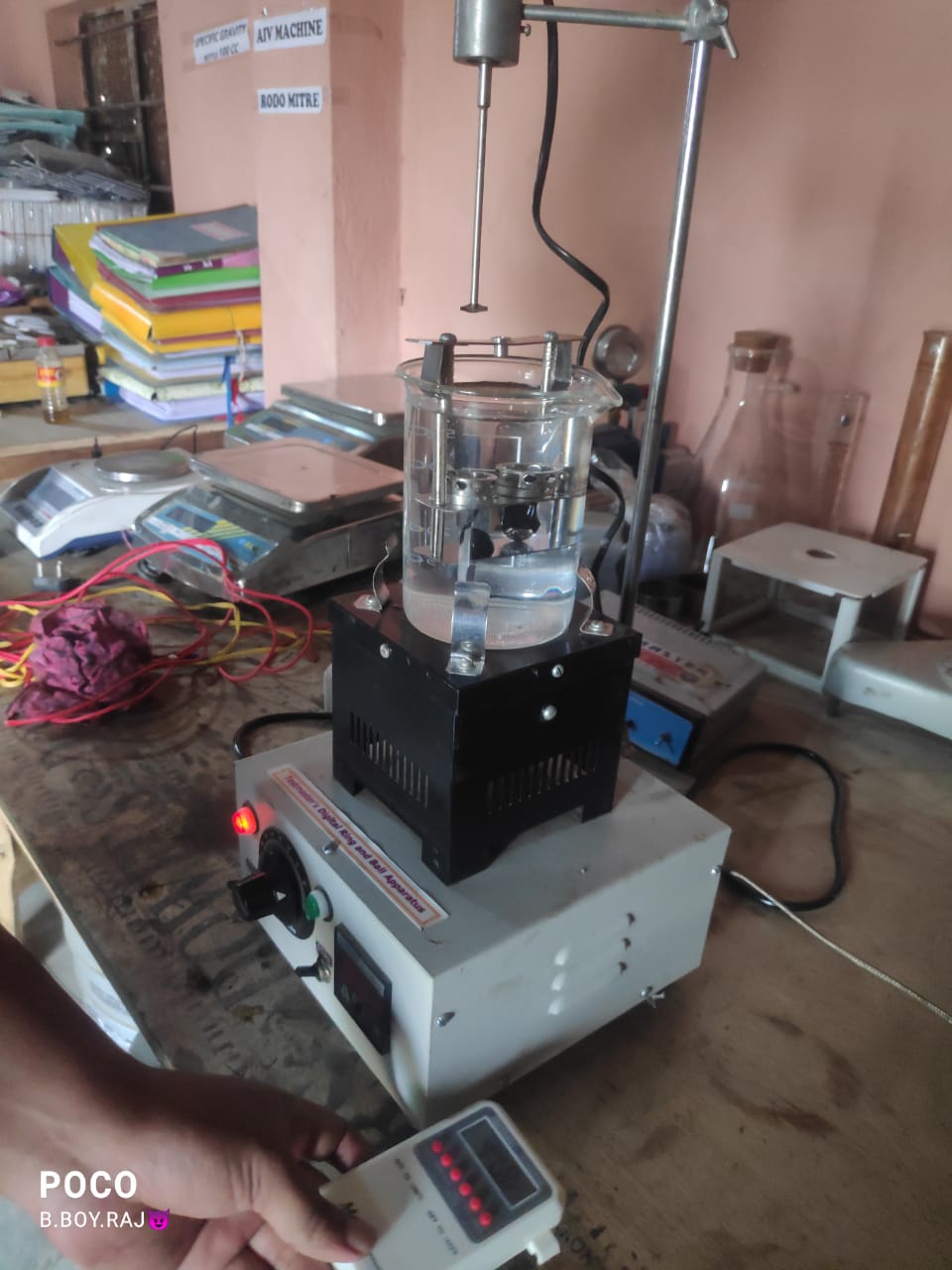

Always cross-check penetration test results with Softening Point Test (IS 1205) and Viscosity Test (IS 1206) to obtain a complete understanding of bitumen behavior under varying temperature conditions.
